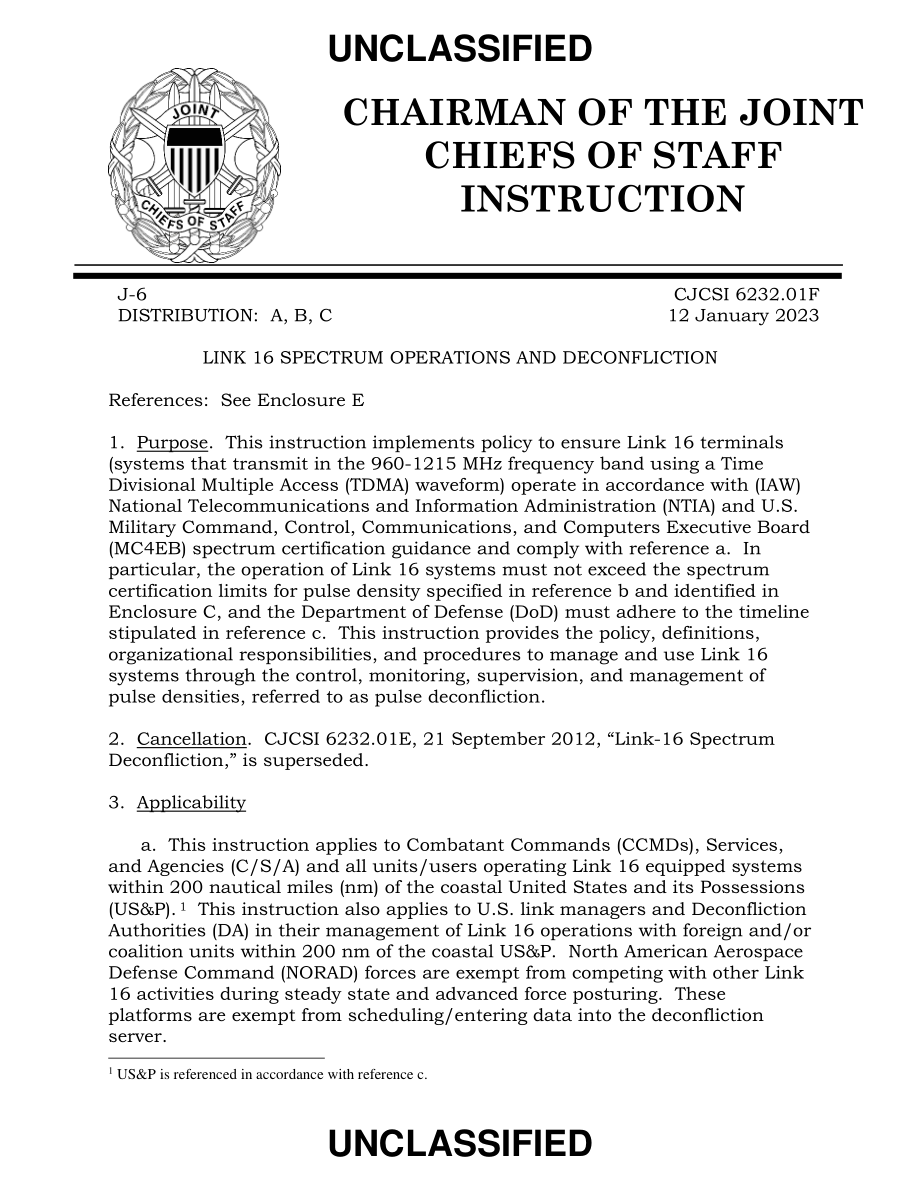

1、UNCLASSIFIED UNCLASSIFIED CHAIRMAN OF THE JOINT CHIEFS OF STAFF INSTRUCTION J-6DISTRIBUTION:A,B,CCJCSI 6232.01F 12 January 2023 LINK 16 SPECTRUM OPERATIONS AND DECONFLICTION References:See Enclosure E 1.Purpose.This instruction implements policy to ensure Link 16 terminals(systems that transmit in t

2、he 960-1215 MHz frequency band using a TimeDivisional Multiple Access(TDMA)waveform)operate in accordance with(IAW)National Telecommunications and Information Administration(NTIA)and U.S.Military Command,Control,Communications,and Computers Executive Board(MC4EB)spectrum certification guidance and c

3、omply with reference a.Inparticular,the operation of Link 16 systems must not exceed the spectrumcertification limits for pulse density specified in reference b and identified inEnclosure C,and the Department of Defense(DoD)must adhere to the timelinestipulated in reference c.This instruction provid

4、es the policy,definitions,organizational responsibilities,and procedures to manage and use Link 16systems through the control,monitoring,supervision,and management ofpulse densities,referred to as pulse deconfliction.2.Cancellation.CJCSI 6232.01E,21 September 2012,“Link-16 SpectrumDeconfliction,”is
